ATX® Cable Pulley Belt Squat – BSM-760

Compact Cable Pulley Belt Squat:

The unusual thing is that for many years Belt Squat Machines were very niche and those that existed were cumbersome cable pulley stations and expensive. Move on 20+ years and lever belt squats are the norm; So much so, I need to emphasise that this is a cable pulley belt squat.

The ATX Cable Belt Squat Machine is a professional belt squat with direct, vertical cable guidance. In contrast to belt squat machines with a lever, this device has a direct force transfer of 1:1 thanks to the vertical cable guidance. The pulleys of the cable are recessed into the platform, so that the movement can be performed extra deep and maximum contraction is possible. The belt squat shifts the weight from the shoulders to the hips, completely relieving the back and spine while squatting. The device is easy to operate and has multiple adjustable start and stop heights for users of different body sizes. The ATX Cable Belt Squat Machine is European certified to EN 20957 I.II.IV class S and suitable for professional applications in gyms.

BSM-670 Squat Machine Details:

• Belt squat machine based on a cable system
• Direct power transmission thanks to the vertical cable guidance
• Relieve the back and spine while squatting
• Extra large platform of 120 x 80 cm for varied foot positions
• Optimal efficiency and easy to operate
• Adjustable start and stop height for different body sizes
• Weight sled with large, ball-bearing rollers for smooth movements

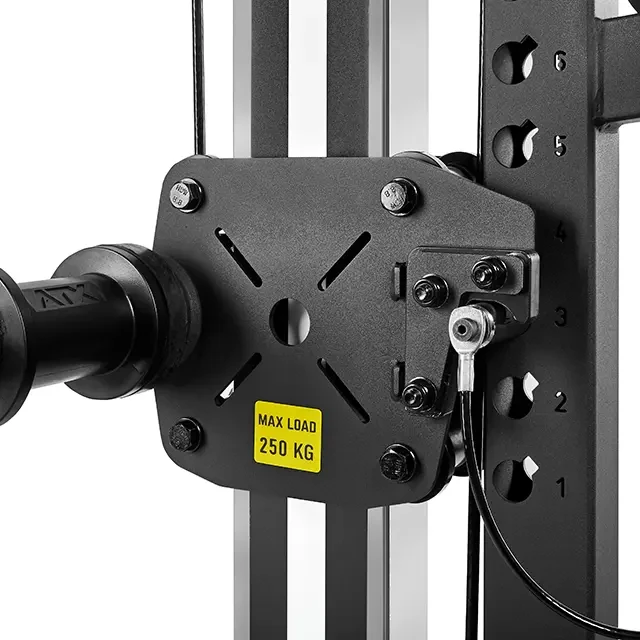

• Heavy duty up to 250 kg (1:1 power transmission)
• Including belt squat belt made of strong nylon, approximately 140 cm long
• Suitable for almost all Olympic 50 mm weight plates
• An adapter for 30 mm weight plates is optionally available
• With integrated pins for attaching resistance bands
• Completely freestanding with thick rubber feet for extra stability
• European certified to class EN 20957 I.II.IV-S for gyms

BELT SQUAT SPECIFICATIONS

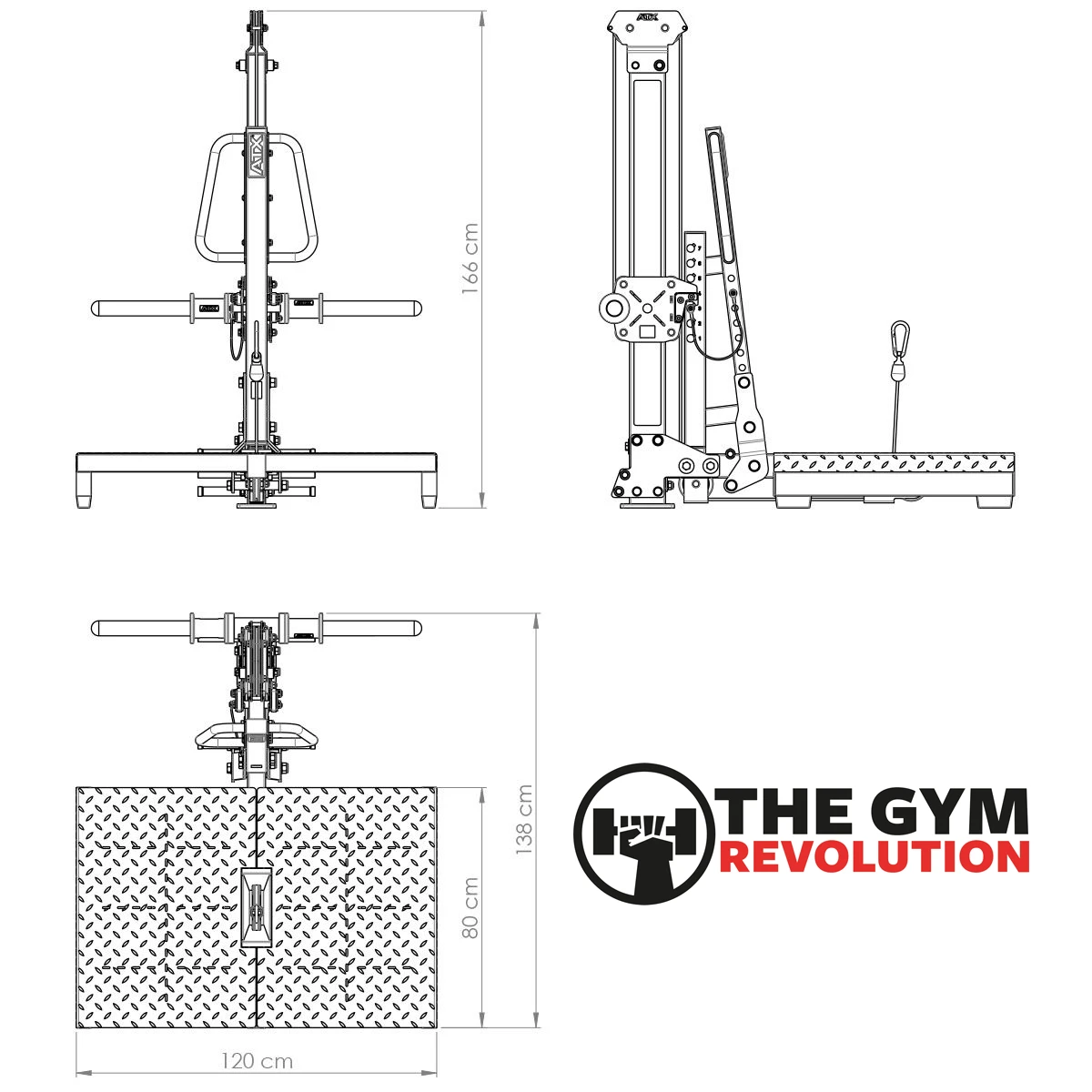

Article number ATX BSM-670 Brand ATX Length 120 cm Width 138 cm Height 166 cm Weight 125 kg Load capacity 250 kg Colour Matte black Additional Includes belt Safety certificate EN 20957 I.II.IV – S

 Here’s a video of the BSM-760 in action:
