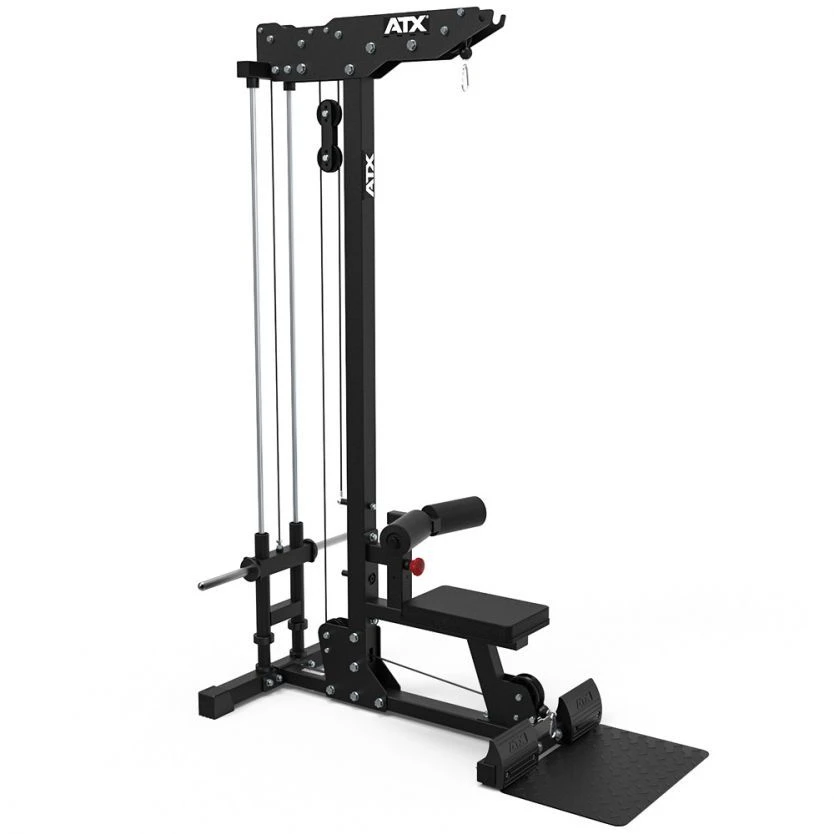

ATX Plate-Load Lat Pulldown/ Low Row LPL-700

A little video look at the ATX Lat Pulldown/ Low Row:



Details of the 2-in-1 ATX Plate-Load Lat Pulldown/ Low Row:

The Plate Loaded Lat Pulldown / low row is the prefect piece of equipment for a home gym or studio. The dual attachment system allows you perform a multitude of exercises.

The hight of the machine means that even a tall person can get a full arm stretch or range of motion on a lat pulldown while seated. The shape of the foot rests gives you the ability to preform rows with out hurting or having pain in your feet.

The machine can be loaded up to 180kg. The new design gives storage for an attached bar on top and is now easier to put together.

Key points of the LPL-700:

Cable pulls from above and below, which can be used without conversion!

Weight ratio 1:1 – no pulley effect!

Silky soft and jerk-free running properties – even with high weights!

Weight carriage (9.2 kg own weight) with special plain bearings Double ball-bearing pulleys for optimal running properties

Guide rods made of hard-chromed piston rods made of solid steel Ø 20 mm

Stretch-free steel cables with plastic coating

Wide pulleys with a V-groove ensure safe rope guidance

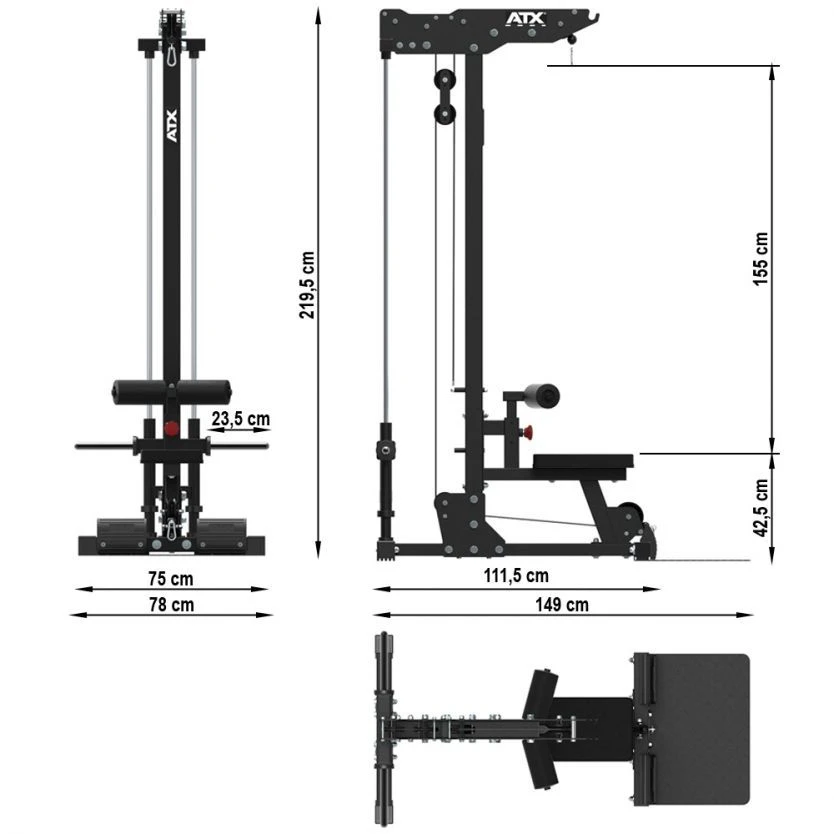

High stretching distance – 155 cm (distance between seat and bar) allows a complete stretching/unhinging of the arms even for tall people

The comfortable padded rolls can be individually adjusted to the respective body size

60 cm wide base plate made of anti-slip tear plate

Wide, anatomically shaped footrests ensure a secure hold when rowing while seated

Extremely robust and stable frame construction

Support post made of 70 x 70 x 3 mm thick profile steel tube + form-lasered 5 mm thick steel sheets

Free-standing

Compact and space-saving

With rubberized feet, floor-friendly and non-slip

Weight plate holder – with adapters for Ø 50 mm weight plates

Heavy duty – up to 160 kg Incl. carabiner

Quality Products Designed in Germany – Certified according to EN 20957 I.II.IV Class S
