IPF Powerlifting Combo Rack COP-700 (by ATX)

We take a look at the IPF Approved Combo:

The ATX ®  Powerlifting Combo Rack is a 2-in-1 competition weight bench and squat rack specifically designed and manufactured for professional squats and bench press. It is approved and endorsed by the IPF.

– Certified according to EN 20957 I.II.IV Class S –
– Quality Products Designed in Germany –

Professional competition Combo Rack for squat and bench press.

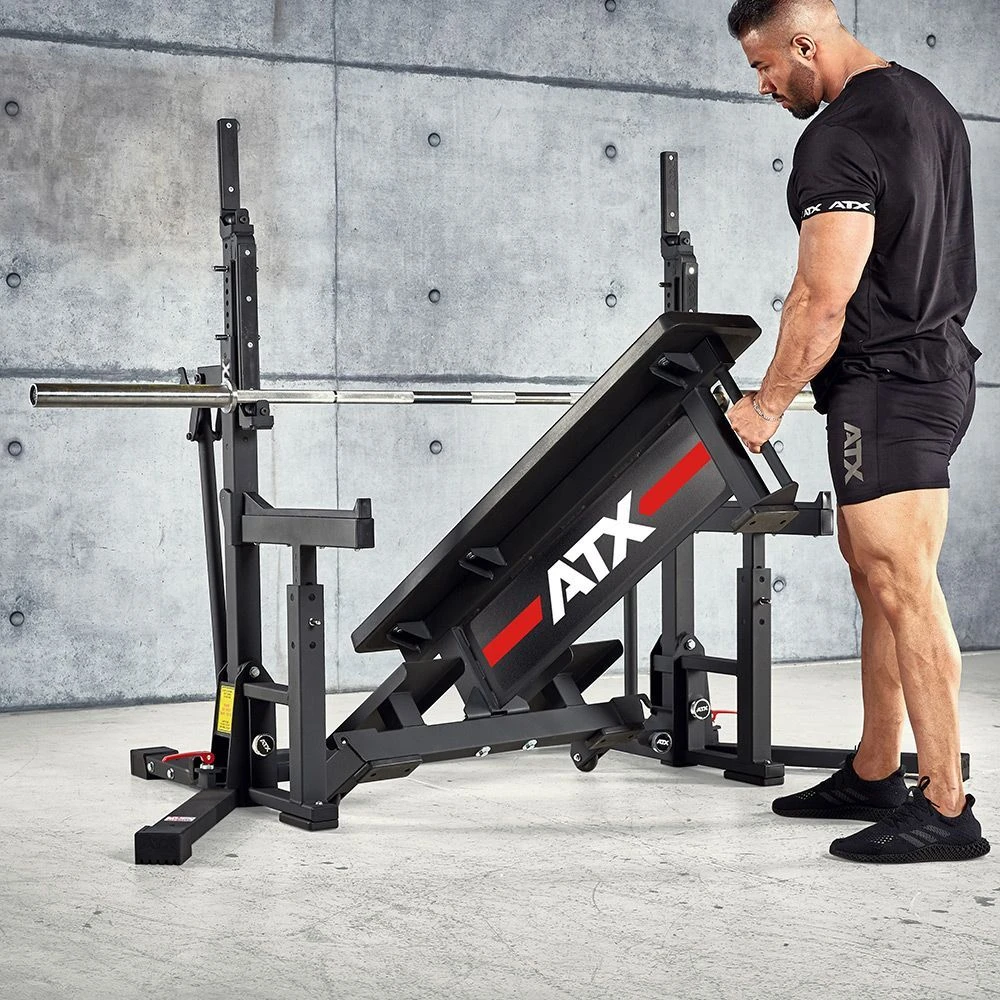

The ATX Combo Rack is a 2-in-1 competition weight bench specially designed for professional squats and bench presses. The rack is heavy duty and finished to a high standard, with a wide base and thick rubber feet for extra stability. The removable bench is easy to move thanks to the integrated wheels and the bow handle. The cushion is made of polyurethane foam with a grippy texture. The spotter platform makes it possible for the spotter to take a comfortable and safe position.

The telescopic barbell supports are height adjustable in fine 25 mm increments and feature laser-cut numbering. Thanks to the lifting mechanism, the barbell rests can be quickly and effortlessly adjusted in height to almost any body size, without having to remove the barbell or the weight plates. The barbell rests are securely locked at the desired height with solid steel magnetic locking pins that are secured against loosening. To make it easier to adjust, the barbell supports are filled with wood on the inside, so that the locking pins can be inserted effortlessly through the holes without getting caught. The uprights can be tilted inward 7.5 degrees, allowing large athletes to use a wide grip while squatting.

The J-hooks are equipped with plastic rollers so that the athlete can easily move the barbell to the left and right during the setup. The rollers are equipped with needle bearings to rotate smoothly and are also made of plastic so that they do not damage the barbell. Thanks to a groove on the front of the rollers, the barbell always lies still in the same position. If necessary, the rollers can be easily replaced, for example when they are worn out. The J-hooks have an extra low lip so that the athlete can easily remove the barbell.

The emergency supports are height adjustable in fine steps of 25 mm and feature laser-cut numbering. The 53 cm long emergency rests are covered with thick rubber and are equipped with face savers that keep the barbell away from the face. Steel brackets on the sides of the emergency supports help prevent the barbell from falling between the uprights and the emergency supports. Just like the barbell rests, the emergency rests are filled with wood to make adjustment easier. If desired, the emergency supports can be easily detached from the rack and removed.

The ATX Combo Rack was developed in Germany and is European certified to EN 20957 I.II.IV Class S for professional applications. In addition, the ATX Combo Rack is certified by the IPF for use in official powerlifting competitions.

Characteristics:

• Professional competition weight bench for squats and bench presses
• Approved by the IPF for use in official powerlifting competitions
• Heavy duty version of 3 mm thick steel with a total weight of 126 kg
• Compact dimensions of 165 x 212 cm with 111 cm of space in the rack

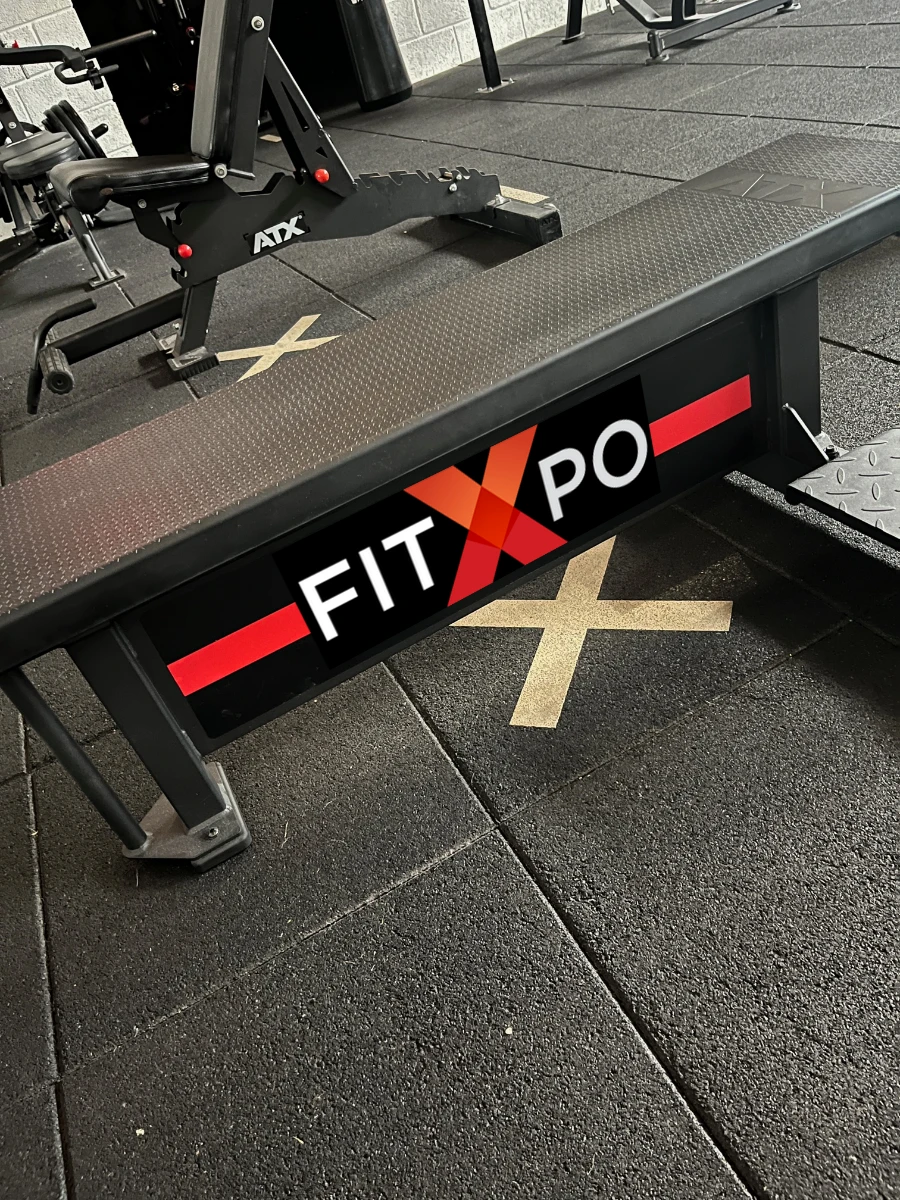

• The bench is easy to move and can also be used outside the rack
• The backrest has generous dimensions of 122 x 30 cm and is approximately 44 cm high

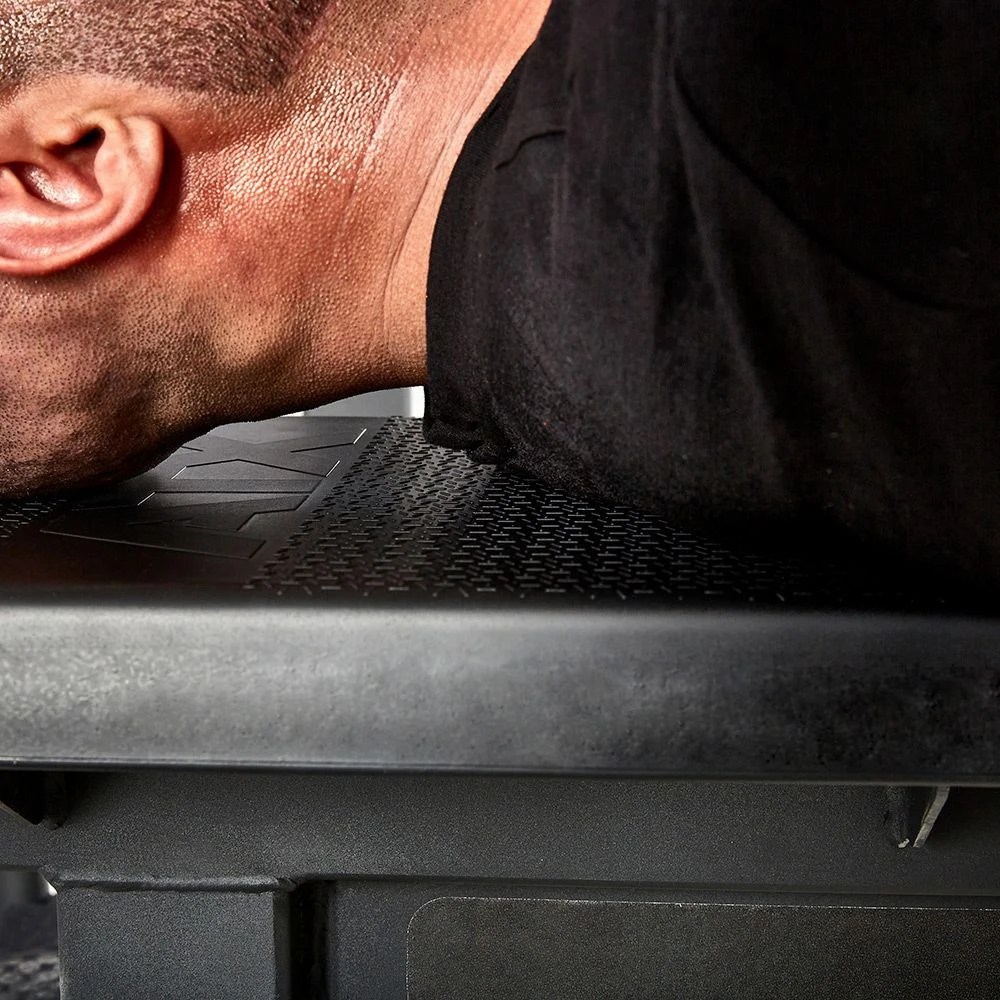

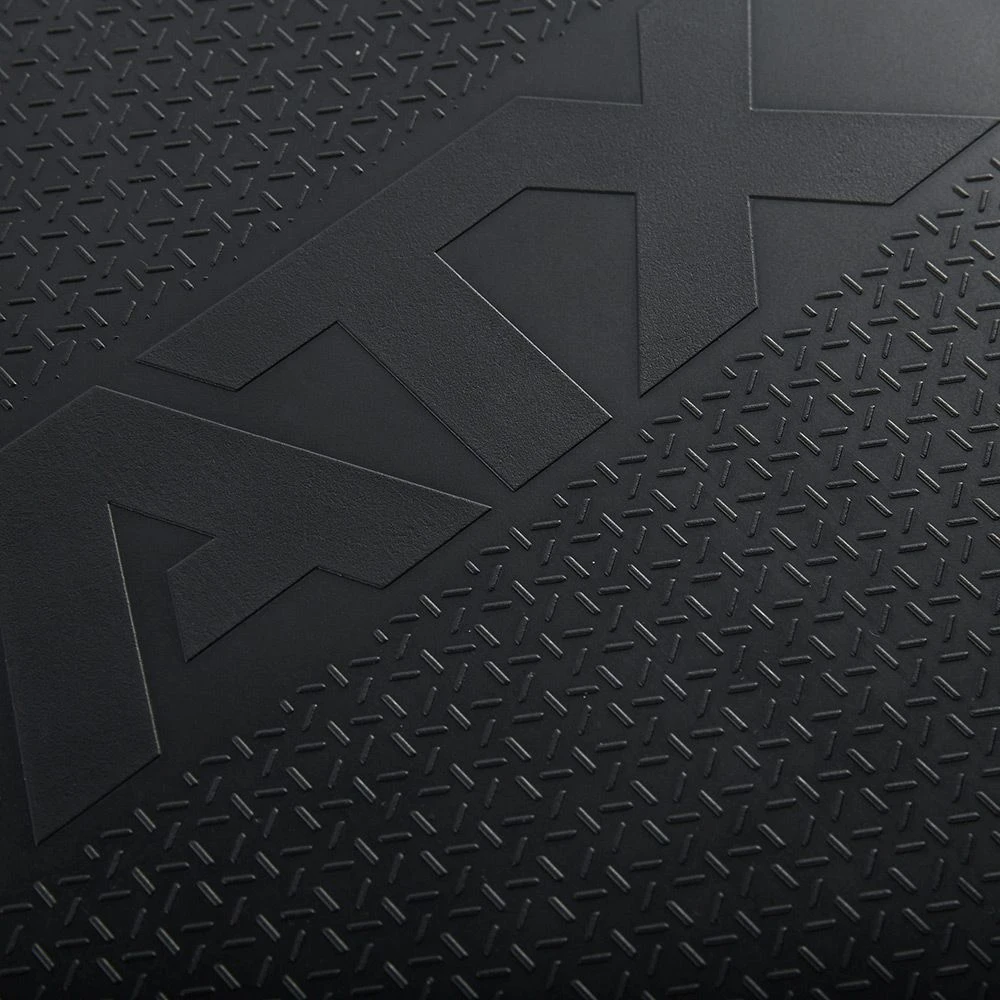

• The backrest is made of polyurethane foam with an extra grippy texture
• The spotter platforms of the bank are 32 x 18 cm in size and 18 cm high from the floor
• With telescopic adjustable barbell supports with laser-cut numbering
• The lower J-hooks for bench press are adjustable from 74 cm to 134 cm height
• The top J-hooks for squats are adjustable from 110 cm to 170 cm height

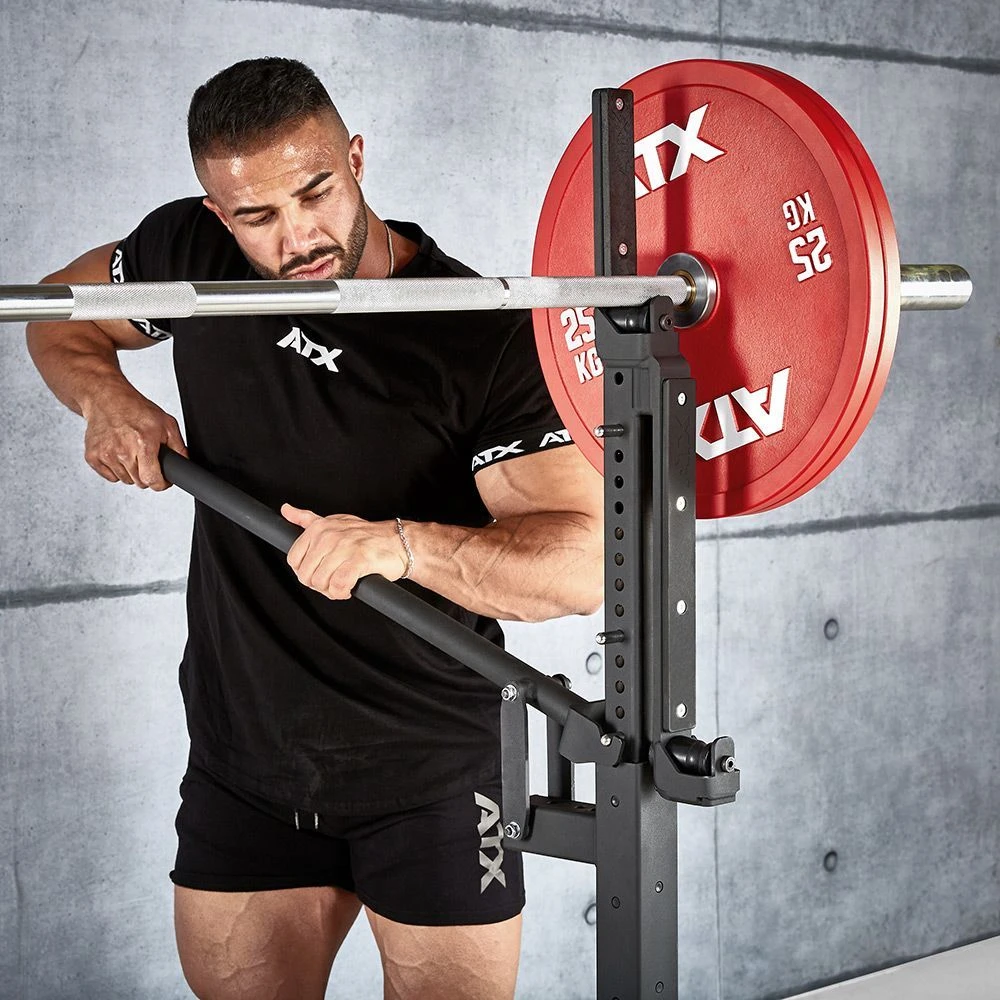

• Handy lifting mechanism for quick and effortless height adjustment of the barbell supports
• With 8 solid steel magnetic locking pins to securely lock the barbell rests

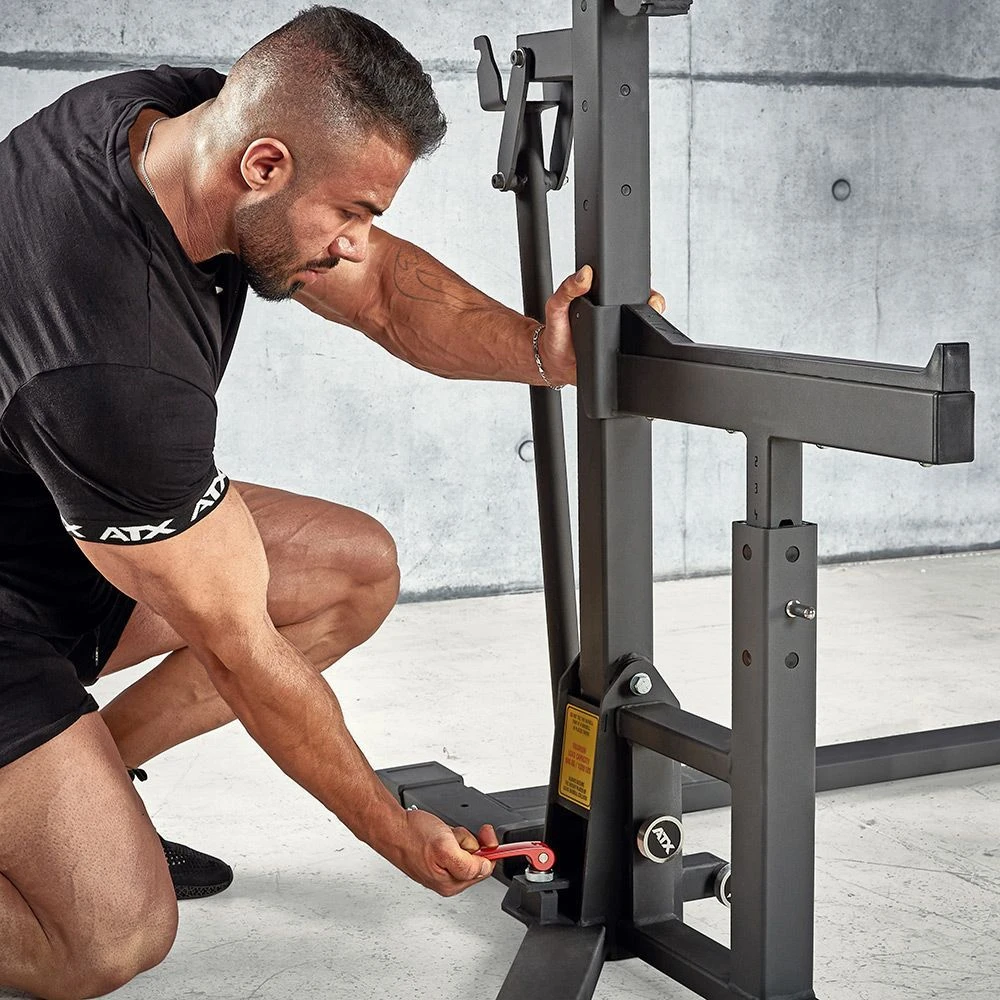

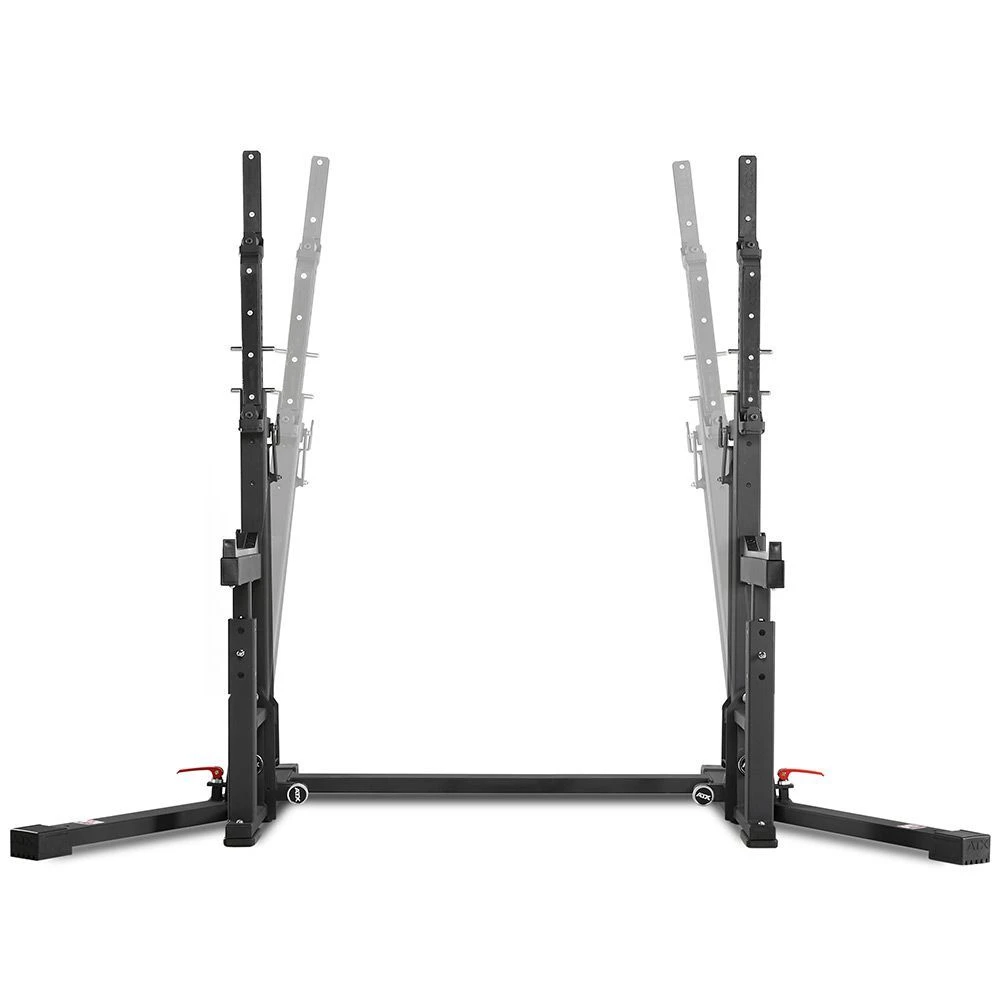

• The uprights can tilt inward 7.5° to create extra space for a wide grip

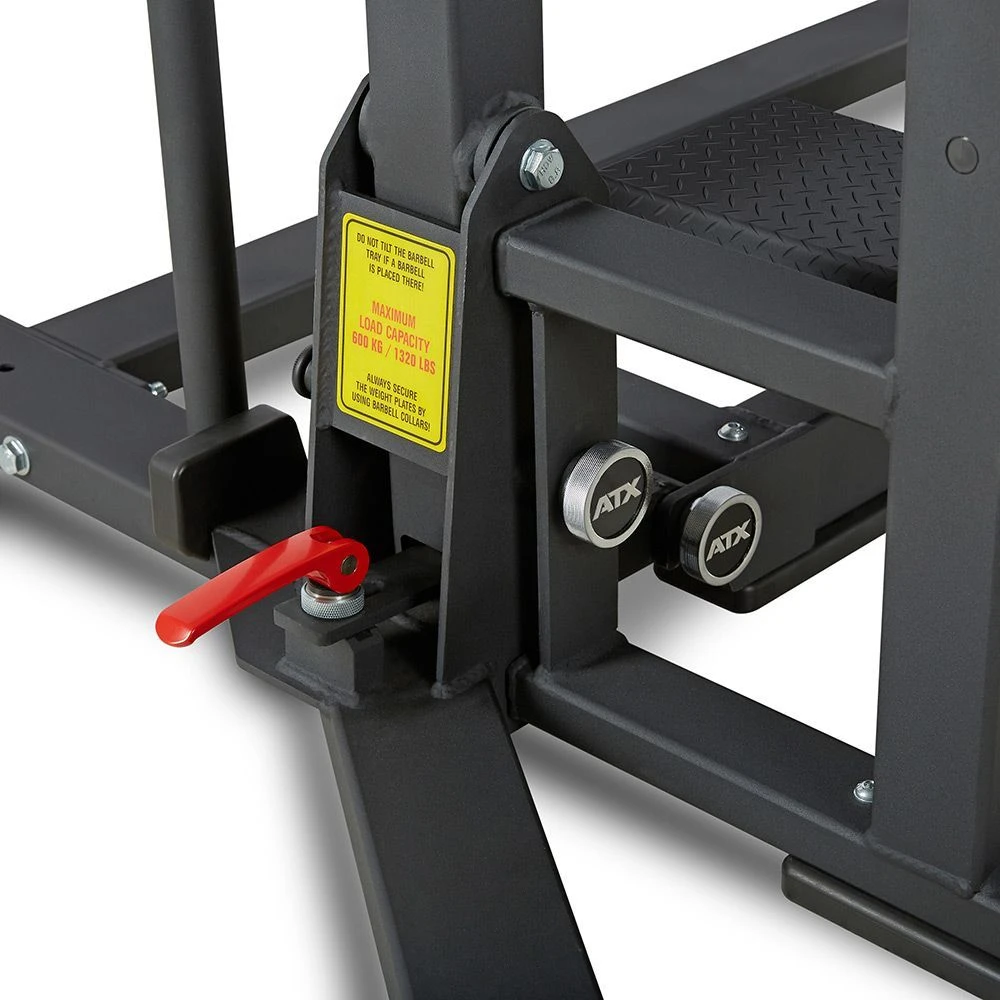

• The unique tilting system is easy and quick to operate with one hand
• J-hooks with bearing rollers for easy centering of the barbell
• The plastic rollers protect the barbell and are easy to replace if necessary
• With removable emergency supports, approximately 53 cm long and with 113 cm elbow room
• The emergency supports are adjustable from 59 cm to 86.5 cm in height, with laser-cut numbering
• With face savers on the emergency supports that keep the barbell away from the face
• The J-hooks and emergency supports are covered with thick rubber to protect the barbell
• Barrell-style uprights leading to j-hooks and safety booms, making pin adjustments faster and easier
• All adjustable parts have plastic wearstrips to prevent metal-to-metal contact and minimize play
• The rack has a high-quality finish with a matt black powder coating
• Completely freestanding with a wide base and thick non-slip rubber feet for added stability
• The rack can be easily dismantled for transport with just a few actions
• Two spare rollers and four spare locking pins are included in the delivery
• Developed in Germany and certified to EN 20957 I.II.IV Class S for gyms

SPECIFICATIONS

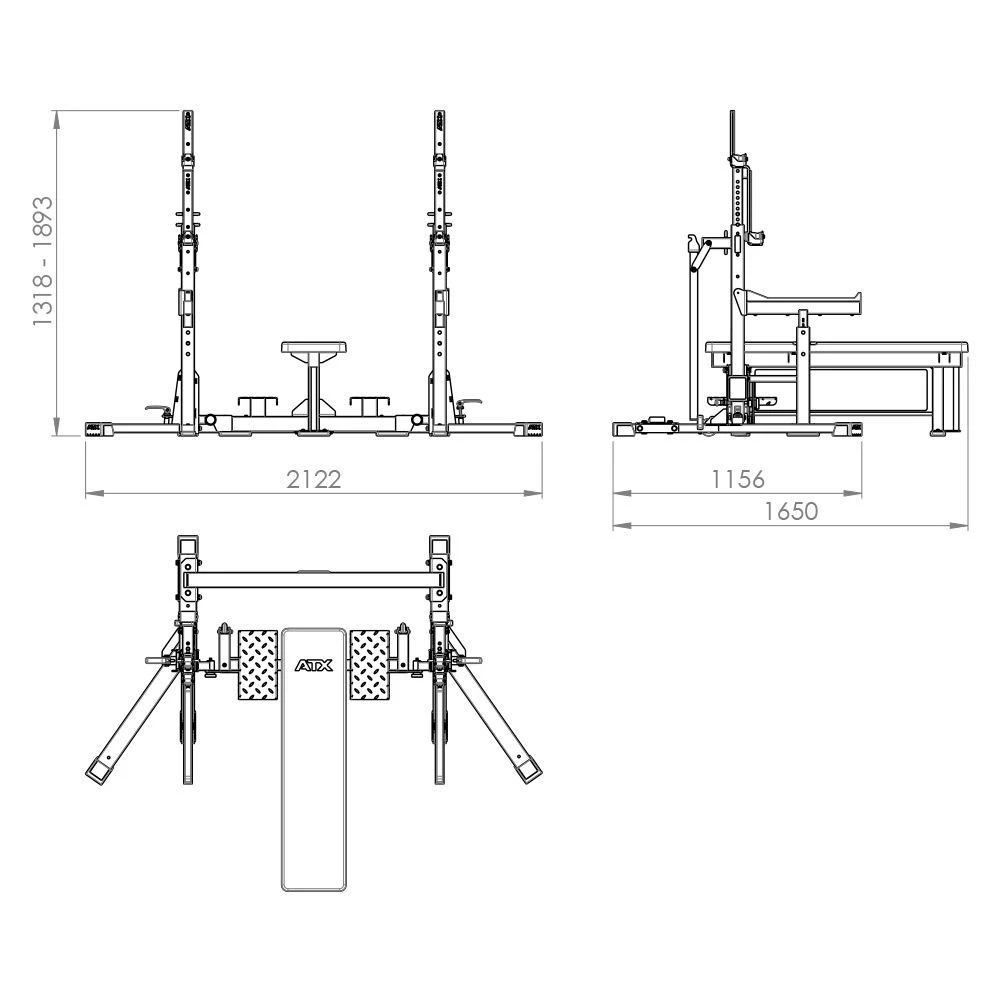

Article number ATX COP 700 Brand ATX Width 212 cm Depth 116 cm (165 cm with bench) Height 132-189cm Weight 126kg load capacity 500kg Height barbell supports 74 – 134cm / 110 – 170cm Emergency support length 53cm Emergency support height 59 – 86.5cm Backrest dimensions 122 x 30 cm Backrest height 44 cm Colour Matt black Certificate EN 20957 I.II.IV – S

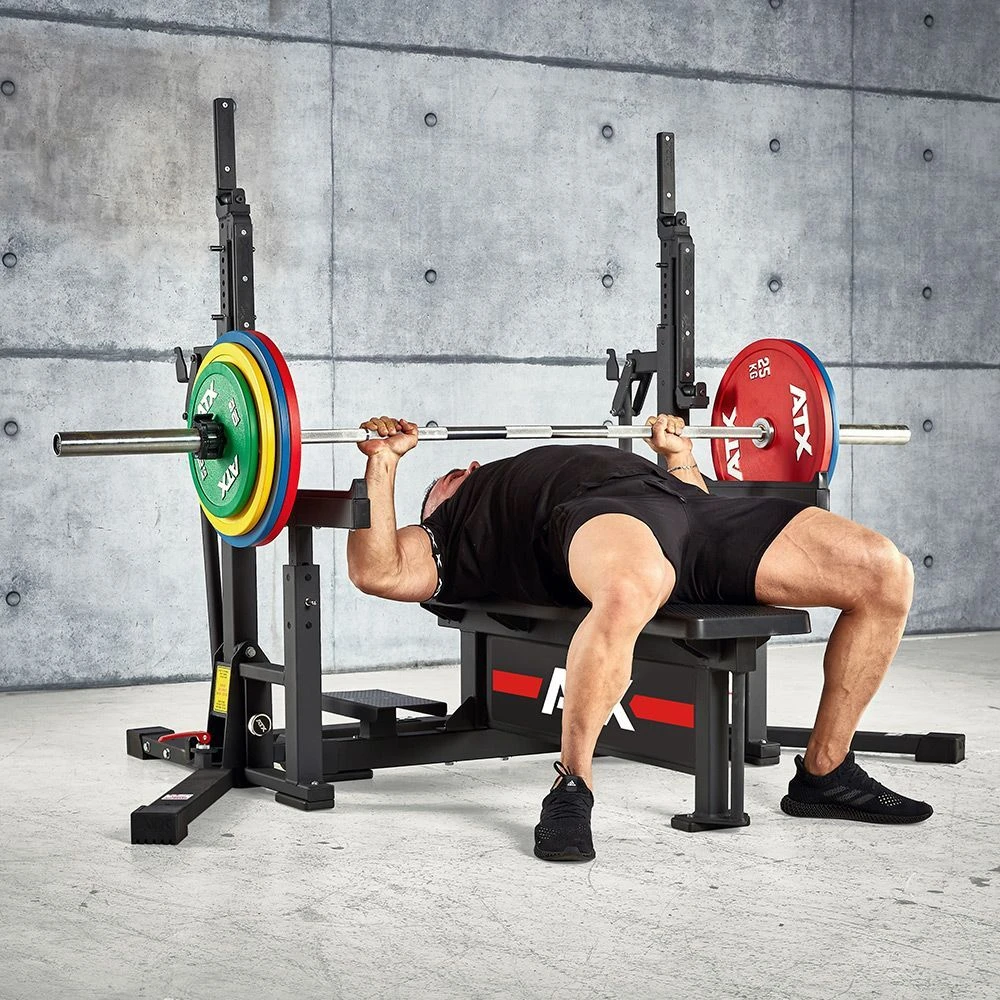

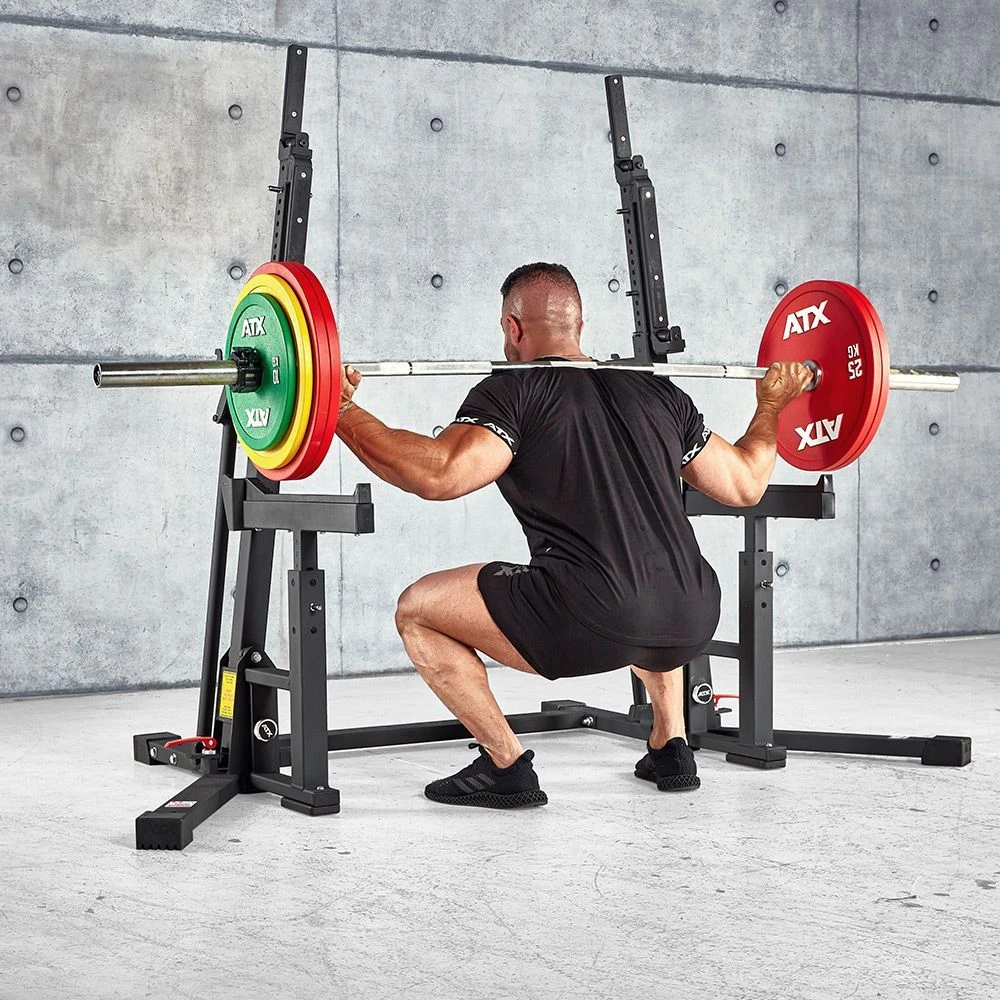

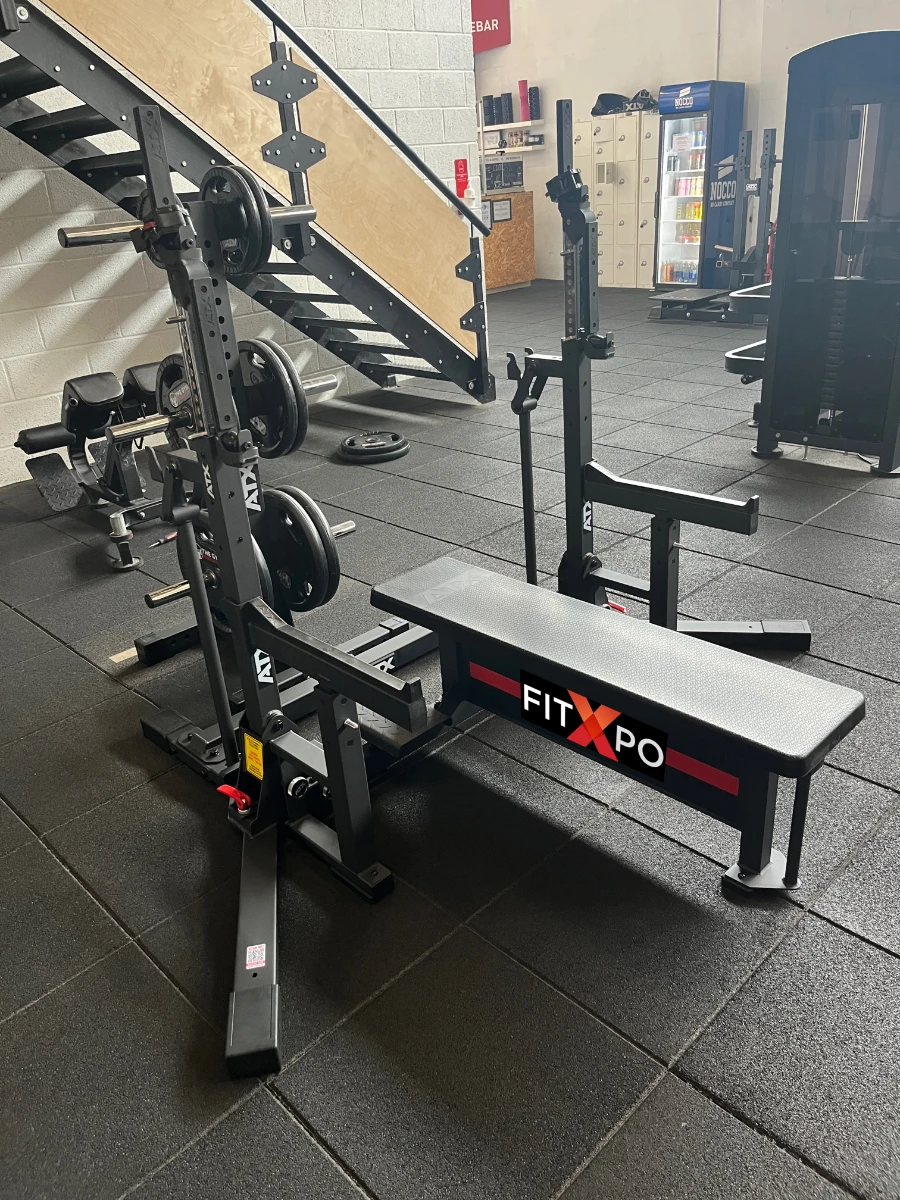

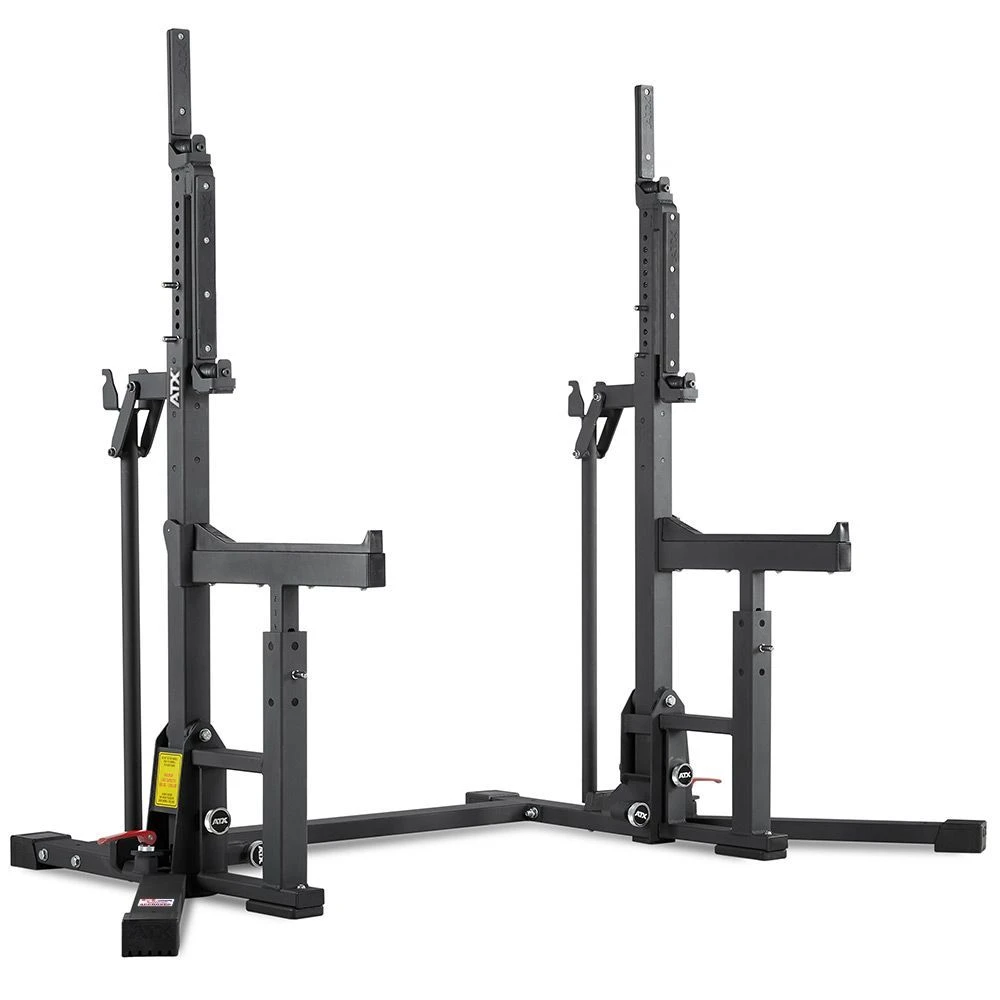

Here are the various positions and set up of the IPF Approved Combo Rack:
