LTO-510 Plate-Load Lat Machine Option (for PRX-510/ 610/710)

ATX ® lat pulldown option 510 – Plate Load

Lat pull attachment option – Plate Load, to expand our equipment –

ATX ® Power Rack – PRX-510
ATX ® Power Rack – PRX-610
ATX ® Power Rack – PRX-710

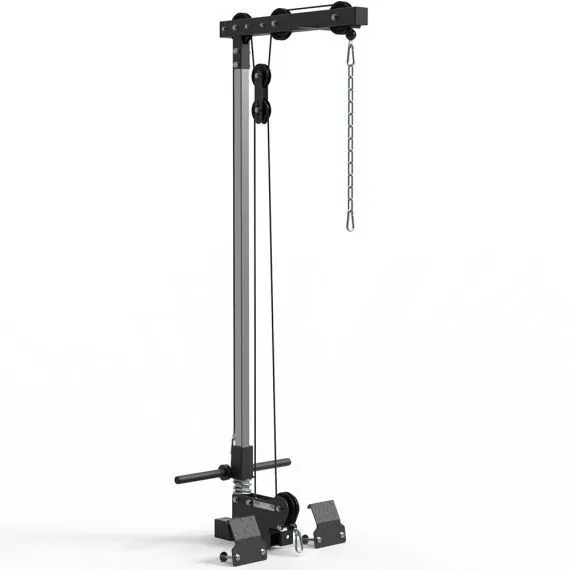

The lat pulling device ATX-LTO-510 is a compact lat pulling station with a weight plate holder for attachment to the equipment mentioned above.
Despite the economical design, the device is very robust and can withstand loads of up to 140 kg! Due to the direct weight ratio of 1: 1 there is no loss of load / no pulley effect! Pulling exercises can be carried out using the upper and lower pulley without modification. The weight sled runs over a chrome-plated square tube and is provided with special sliding strips, the pulleys are ball-bearing and the plastic-coated steel cables are stretch-free, this ensures a smooth and jerk-free run. The pre-tensioning of the pull ropes can be precisely adjusted using the pulley unit. Two clamping plates for supporting with the feet during rowing exercises while sitting are also included in the scope of delivery, as is an extension chain for attaching various pull handles Cables handles are sold separately.
The ATX-LTO-510 is an inexpensive yet highly functional lat pulldown option, which enormously expands the range of exercises on the power rack.

Quality Products Designed in Germany – Certified according to EN 20957 I.II.IV Class H

• Heavy load – up to 140 kg
• No loss of load due to direct weight transmission 1: 1
• Upper and lower pulley can be used without modification
• Good jerk-free running properties thanks to the sliding strip guide and ball-bearing rope pulleys
• Stretch-free steel ropes with black plastic protective coating
• With foot plates for support when rowing while sitting
• Including extension chain for hanging various pull handles and for setting the optimal pulling position
• incl. 3 snap hooks
• Weight plate holder olympic Ø 50 mm x L 25 cm.
• The height of the cable eyelet is 183 cm – height from the floor to the ring eyelet
• Total height 198cm
