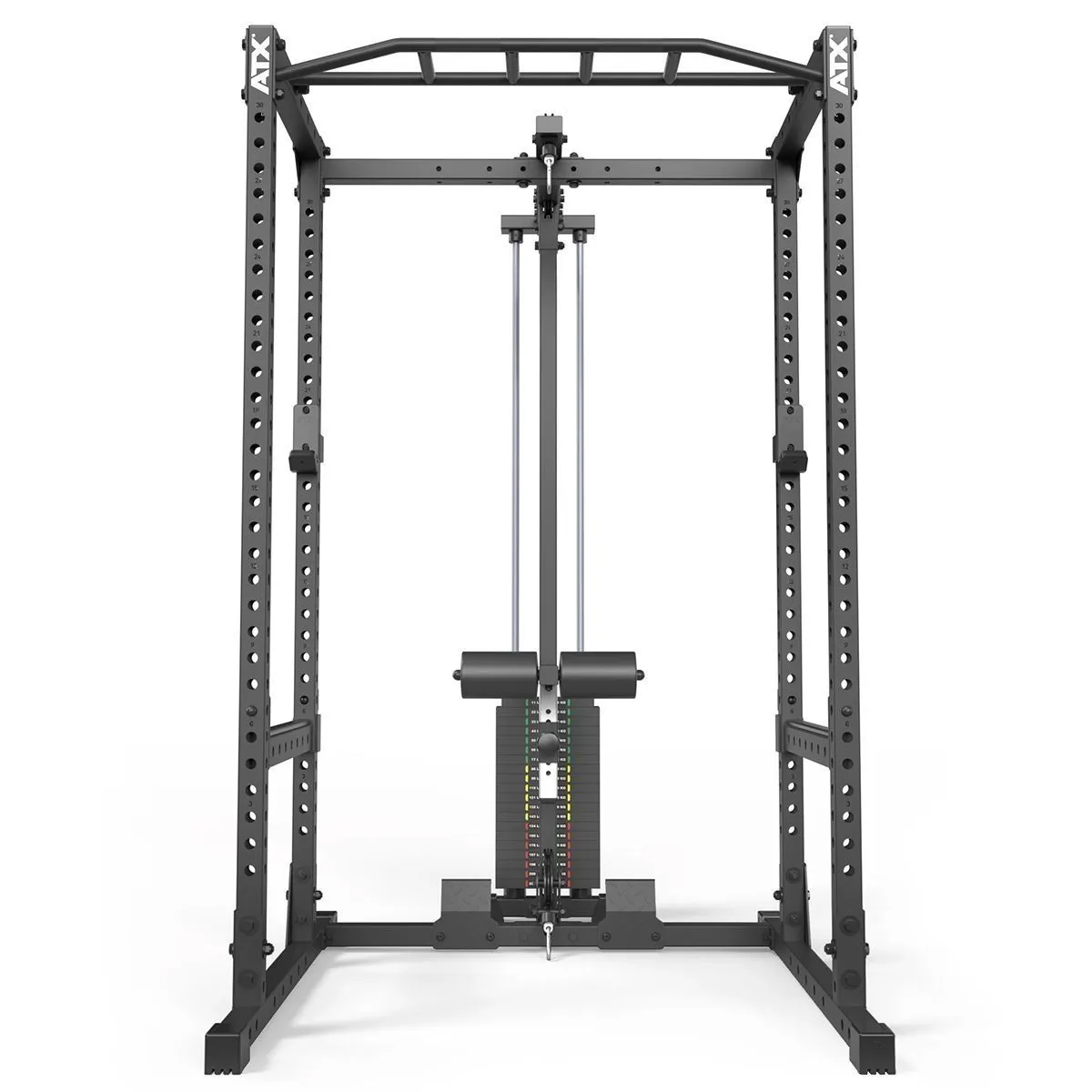

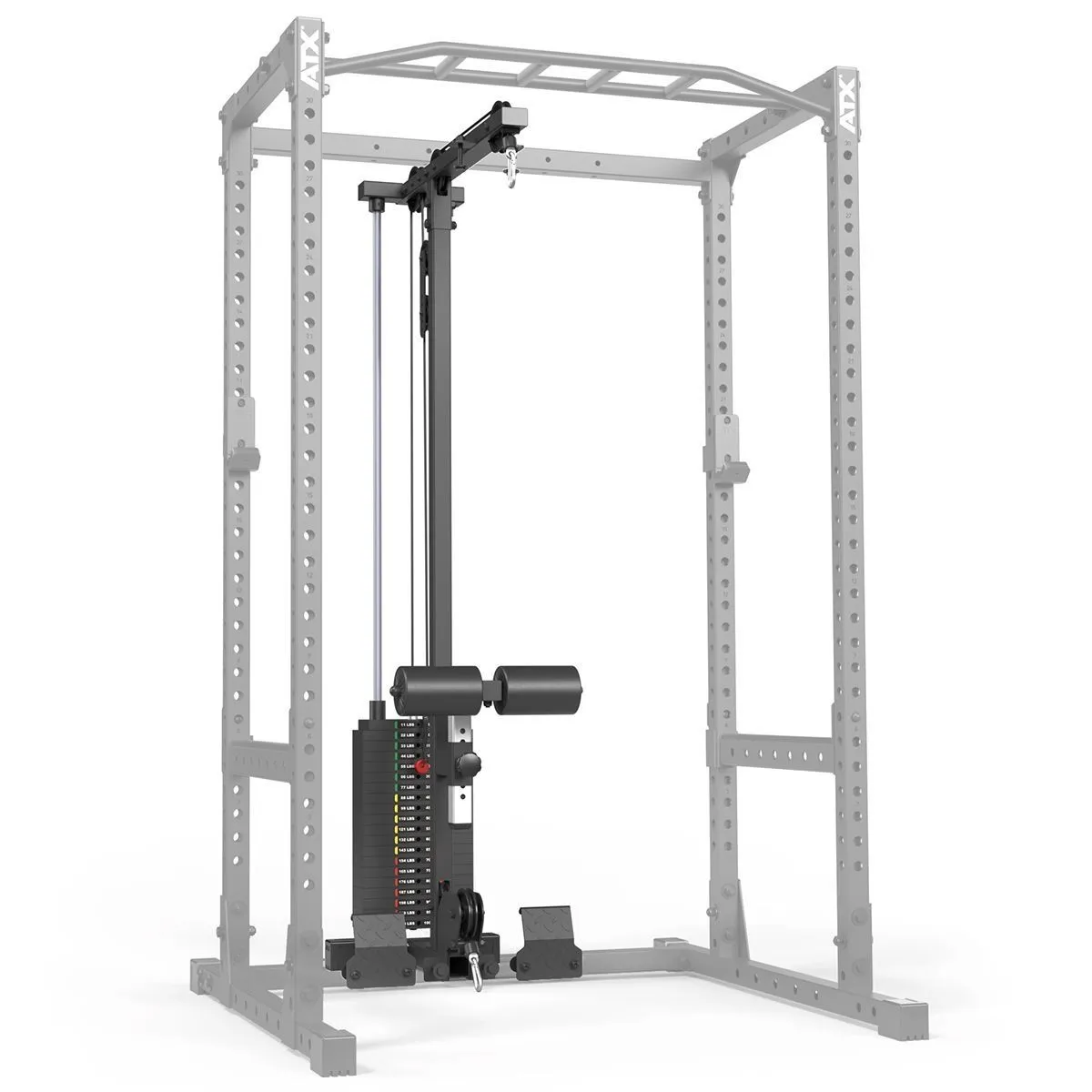

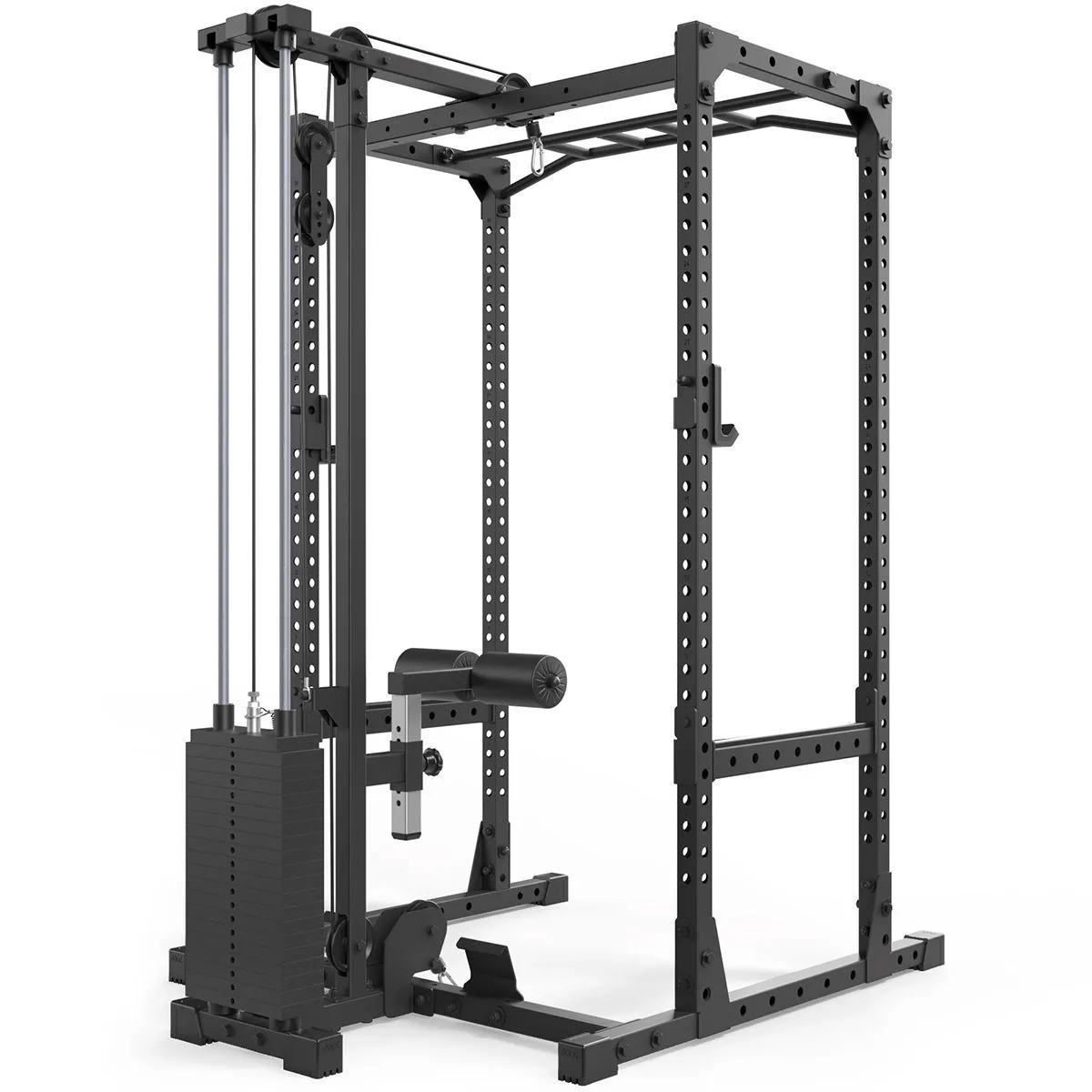

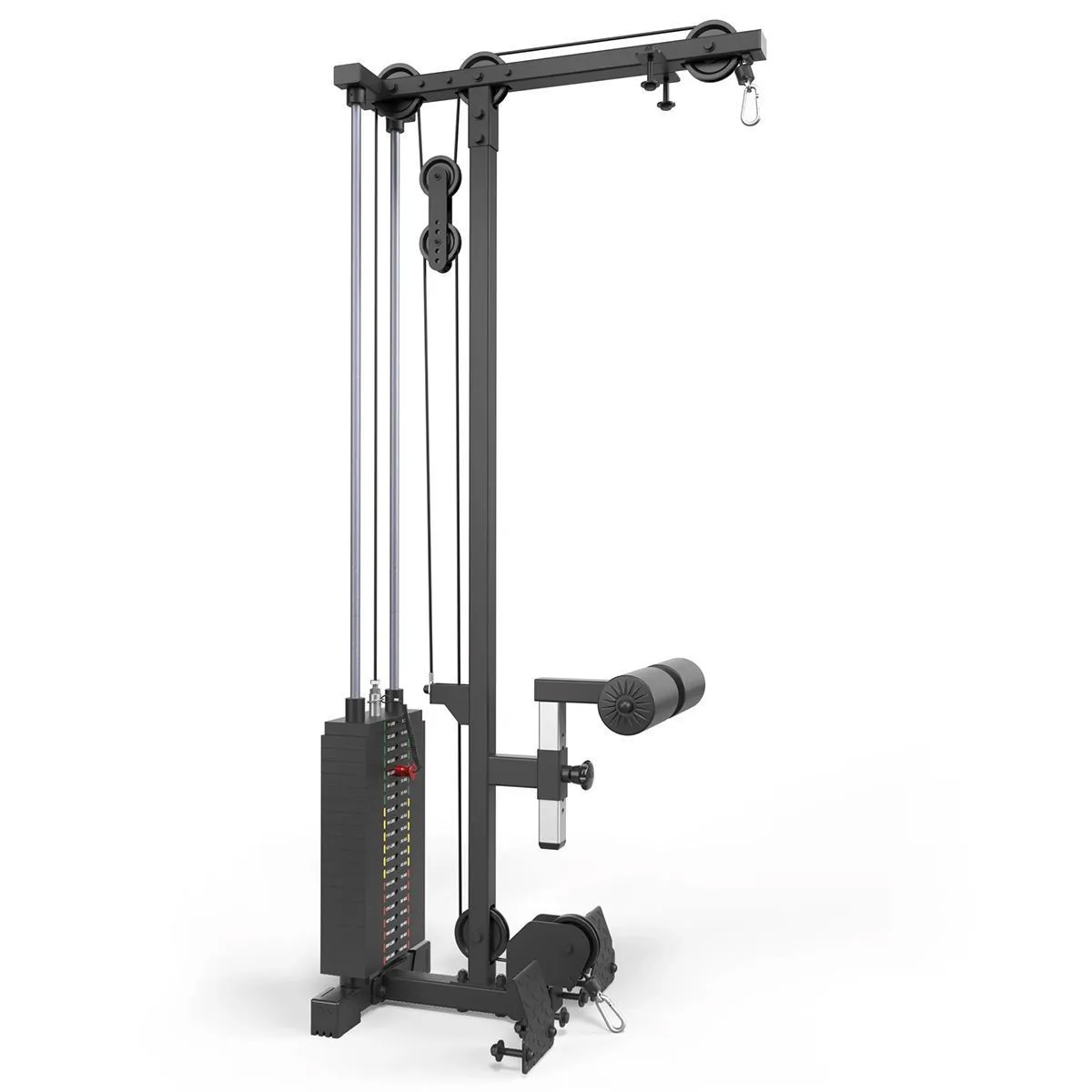

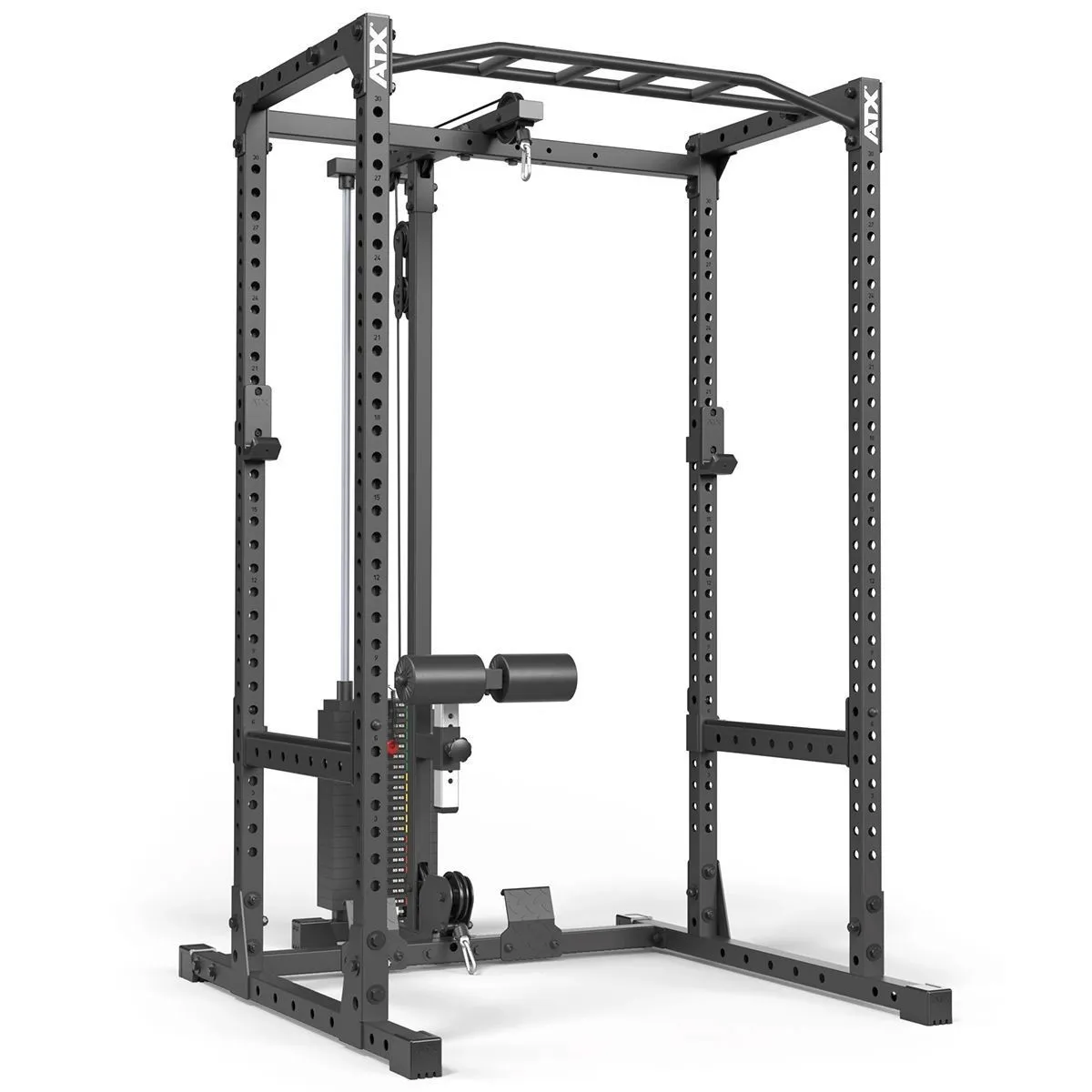

LTO-510 Stack-Weight Lat Machine Option (for PRX-510/ 610/710)

ATX ® lat pulldown option 510 – Stack-Weight

Lat pull attachment option – Plate Load, to expand our equipment –

ATX ® Power Rack – PRX-510
ATX ® Power Rack – PRX-610
ATX ® Power Rack – PRX-710

This compact lat pulley option LTO-510 is equipped with a 100 kg heavy weight stack in 5 kg increments, allowing the desired weight to be selected quickly and easily. This lat station has a direct force transmission of 1:1, which means that there is no weight loss. The device has an upper and a lower cable that can be used at any time without having to convert the device. The weights move smoothly over the chromed steel guide rods thanks to the special plastic slide bearings, the ball-bearing pulleys and the non-stretch steel cable with plastic coating. The pre-tension of the steel cable can also be precisely adjusted. The integrated footrests provide additional support during seated rowing exercises and the adjustable leg rollers make it possible to clamp the thighs during heavy lat pulldowns.

Quality Products Designed in Germany – Certified according to EN 20957 I.II.IV Class H

• Heavy load – up to 100kg
• No loss of load due to direct weight transmission 1: 1
• Upper and lower pulley can be used without modification
• Stretch-free steel ropes with black plastic protective coating
• With foot plates for support when rowing while sitting and a knee/ thigh brace for lat pulldowns
• 100kg weight stack in 5kg increment pin-selected slabs.

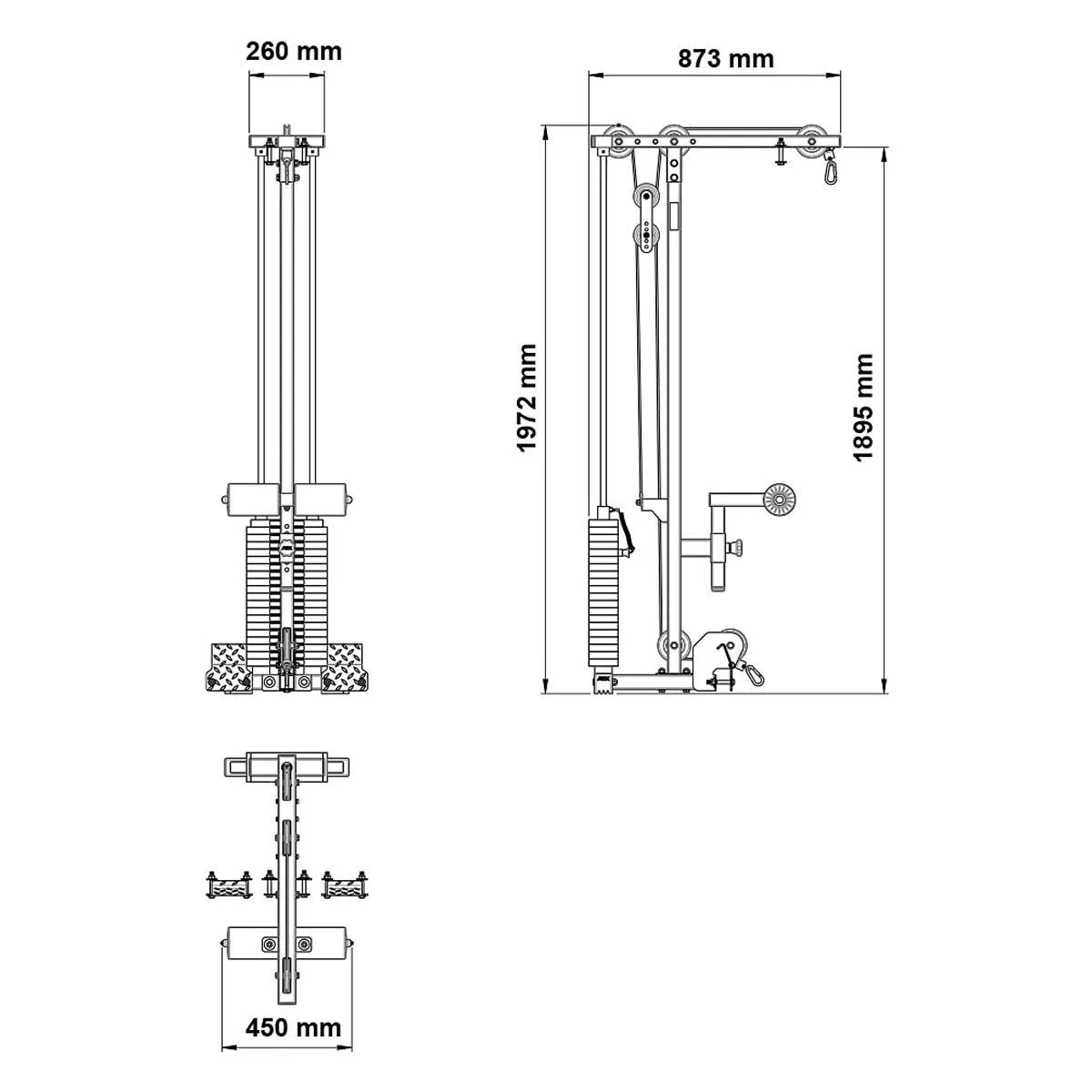

• The height of the cable eyelet is 183 cm – height from the floor to the ring eyelet
• Total height 198cm
