Modular Storage Rack

Build your own rack with this unique modular storage system

Modular Storage Rack – PRO version

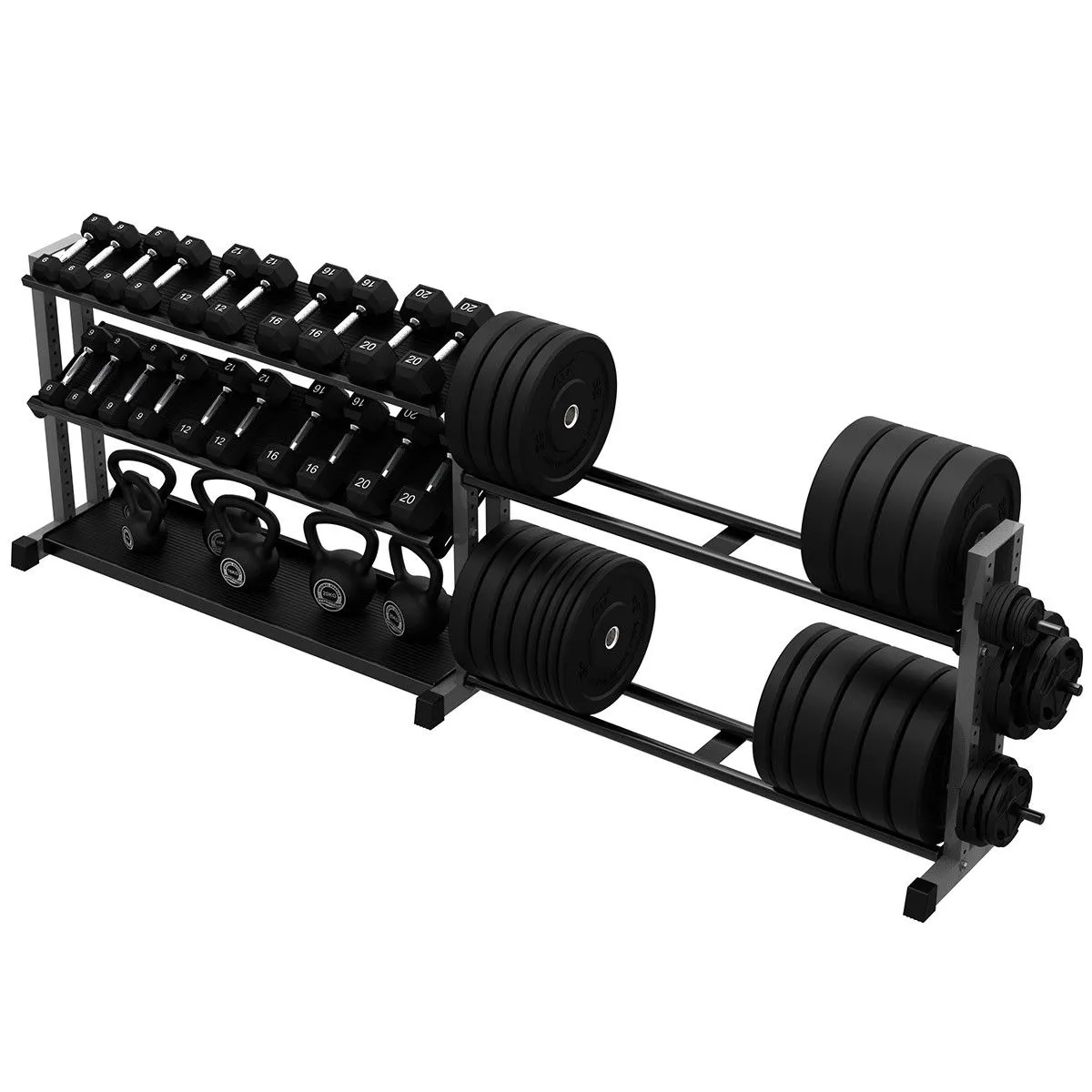

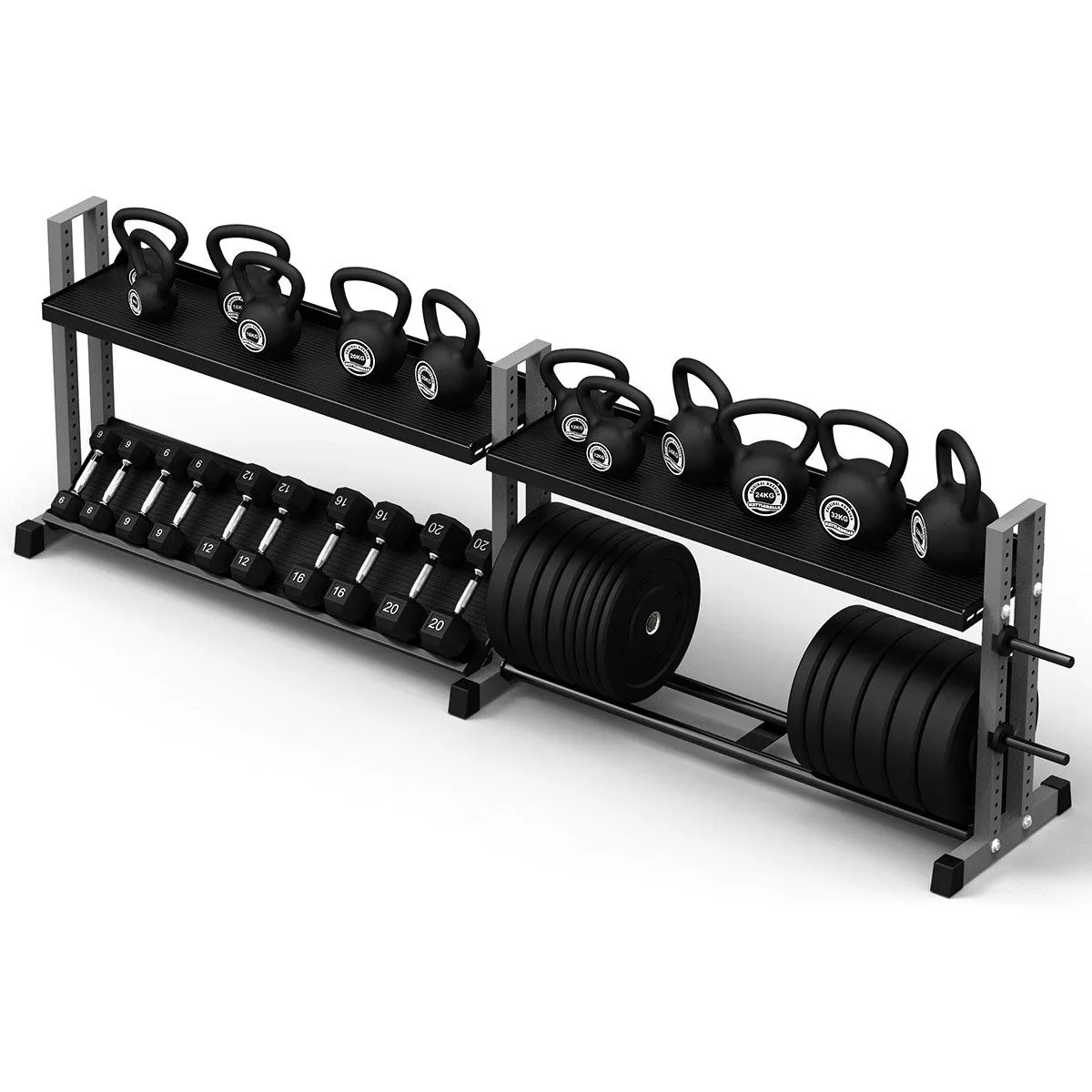

The new Modular Storage System Pro is a unique multifunctional and flexible expandable storage system that is suitable for storing dumbbells, kettlebells, weight plates and medicine balls. This universal storage rack can be flexibly converted or expanded at any time and for all needs thanks to the various shelves and accessories. The shelves are 150 cm wide and can be combined as desired and mounted on two or three levels above each other. The maximum load capacity per section of the rack is 600 kg.

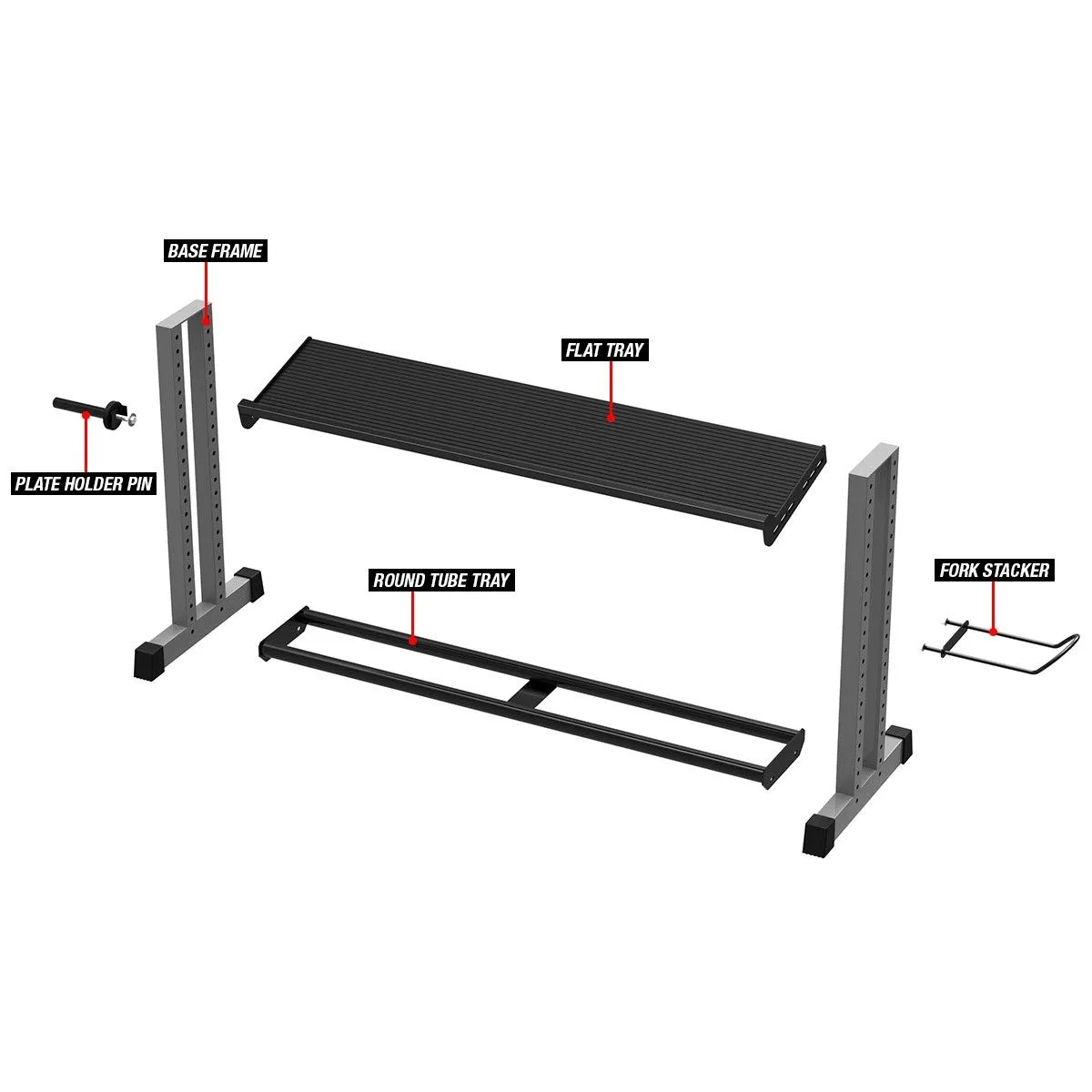

At the top of this page, select the components required for your storage system in the desired quantity. The storage system can be assembled as desired from the following components:

Base Frame

• Basic frame made of thick-walled square tubes
• With a 4 cm system grid for attaching shelves and accessories
• With rubber anti-slip feet, floor-protecting and sound-absorbing
• Height 96.5 cm x depth 58.5 cm; weight approx. 9 kg
• Please note: these are now colored black, not gray as in the photos
• Price per piece

Flat Tray

• Storage shelf with up to three usable storage levels
• Suitable for kettlebells and all common dumbbells and barbells
• Can be mounted completely flat or diagonally at five different angles
• With a 4 cm high raised edge on one side for extra safety
• Can be mounted variable in height in a fine 4 cm grid
• With rubber coating to protect the training equipment
• Length 150 cm x width 37 cm; weight approx. 17 kg

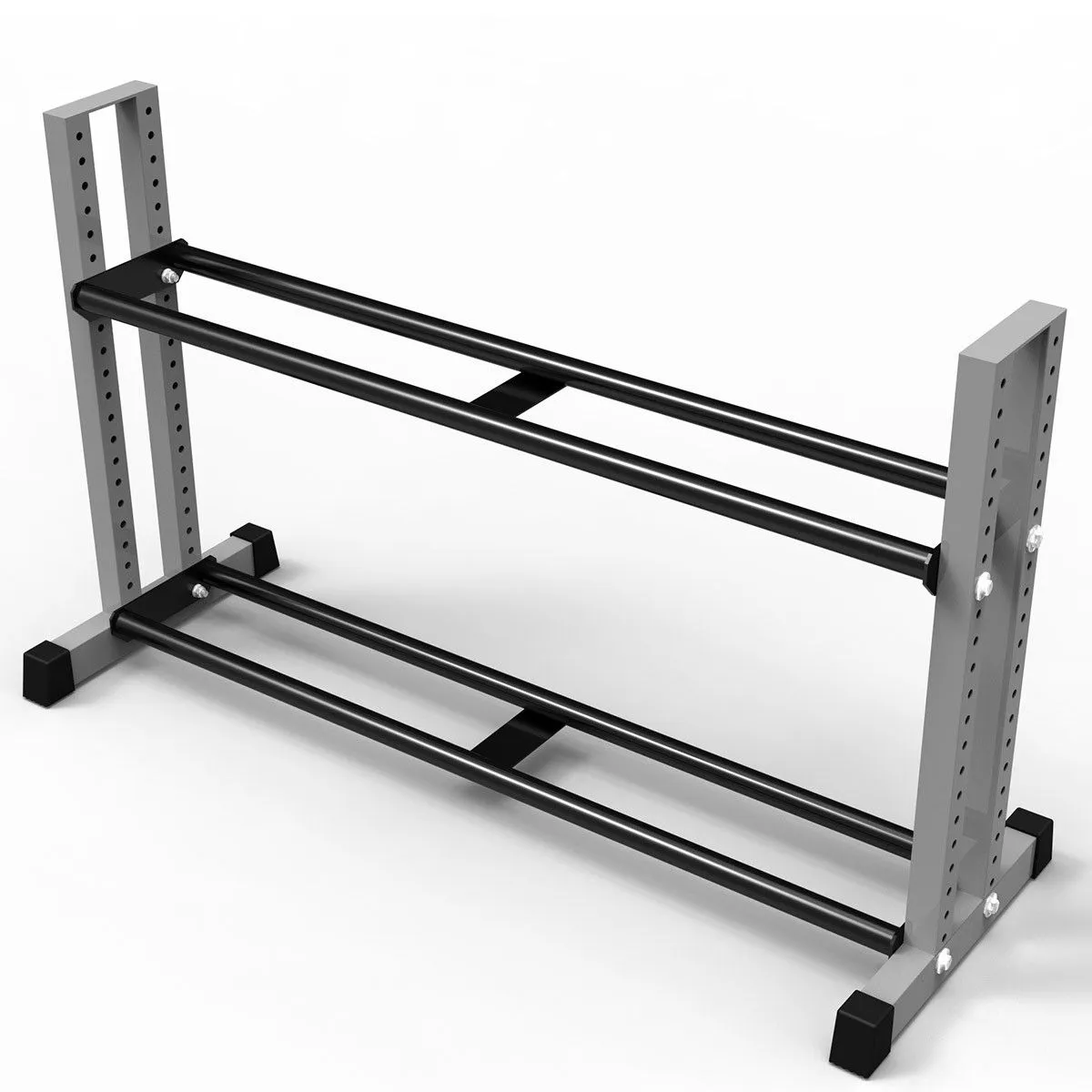

Round Tube Tray

• Round tube storage shelf for all common weight plates
• Also suitable for storing medicine balls
• Can be mounted variable in height in a fine 4 cm grid
• Length 150 cm x width 25 cm; weight approx. 8 kg

Fork Stacker

• Storage fork for medicine balls and other weight balls
• With slanted edge to prevent rolling off
• Can be mounted to the base frame in variable height
• Length approx. 30 cm; weight approx. 0.7 kg

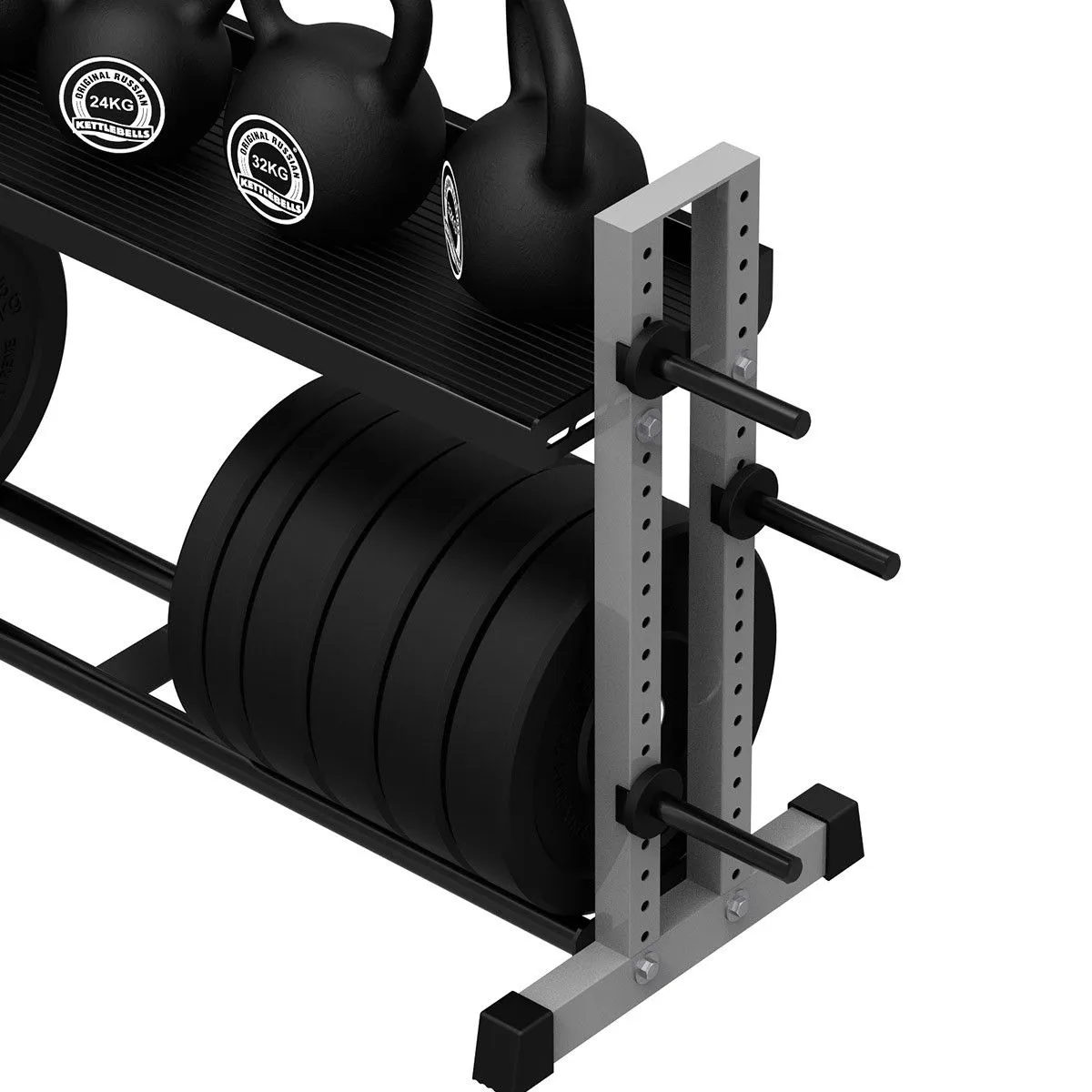

Plate Holder Pin

• Hanging pin for all common types of weight plates
• Suitable for 30 mm weight plates, optionally with adapter for 50 mm weight plates
• With rubber bumper to prevent the weight plates from hitting the frame
• Can be mounted to the base frame in variable position and height
• Diameter 30 mm, length 20 cm; weight approx. 1.4 kg
• The optionally available 50 mm adapter is approx. 25 cm long

The price of all components is per piece

All components are supplied including mounting materials.

The training equipment shown in the sample photos, such as weight plates, dumbbells, kettlebells, medicine balls and barbells, are not included with the storage system.
